CPD SERIES 75-105HP

The CPD series of industrial air compressors ranges from motor ratings 75 hp , 100 hp & 120 hp. each model is available in three pressure variants viz, 8 bar , 10 bar & 13 bar, with capacity ranging from 360 cfm to 530 cfm.


  • Reliable under any operating conditions and featuring a high-efficiency pump, high-yield electric motor and coaxial coupling.
  • High-performance element with asymmetrical profile rotors that limit waste and improve overall output thanks to the absence of vibration and the range of nominal speeds.
  • EFF1 electric motor with cast-iron casing, Class F, IP55 protection, high yield and low heat generation.
  • Thanks to its compact size, it can be easily handled, even with a transpallet.
  • The design allows the compressor to be ┬ápositioned close to walls.

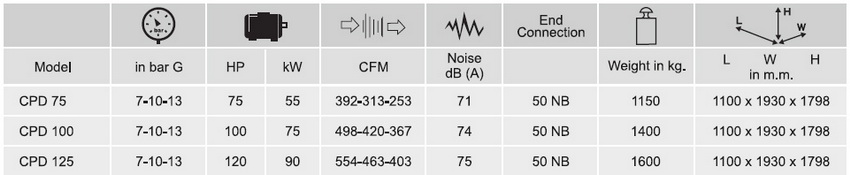

Technical Data

Click Here

Download brochure of CPD SERIES
