CPE SERIES 100-120HP

The air-cooled compressors of series CPE were designed for high-performance systems and harsh conditions. The machines of this series are characterized by a coaxial coupling, which reduces the energy consumption by 3-5%. It also convinces with a reduced noise level and low maintenance requirements and ensures reliable operation.The alignment of the motor and the compressor based on a centered coupling housing, so that the stability of the machine is ensured. The structure comprises a horizontal combined cooler, increases the cooling performance of the device and facilitates the carrying out of oil changes.

Key Benefits

• Low sound enclosure
• 125 psig readily available
• 100, 150 and 175 psig also available
• Wye-delta starter and TEFC motor are standard
• ES4000 microprocessor control (CPE 100 - 125 HP)
• 230/460V (CPE 100 - 125 HP) and 575V (CPE 100 - 125 HP)
• Separate oil and aftercoolers
• Temperature protection on drive side motor bearings (CPE 100 - 125 HP)
• Air/oil tank with temperature protection • Flexible drive coupling (CPE 150)
• Improved long life inlet value
• Latest design minimum pressure/oil stop value
• Shipped with 8,000 hour lubricant as standard

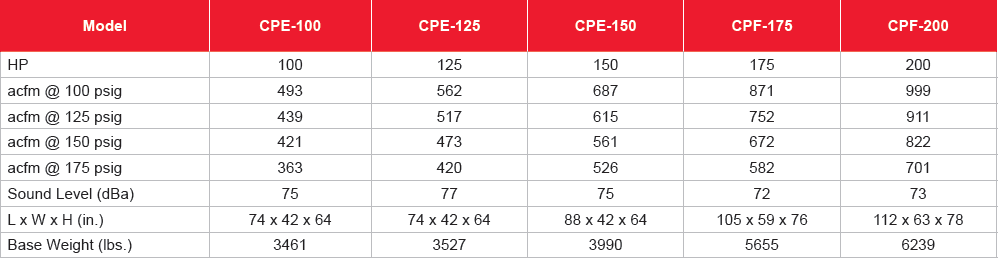

Technical Data
